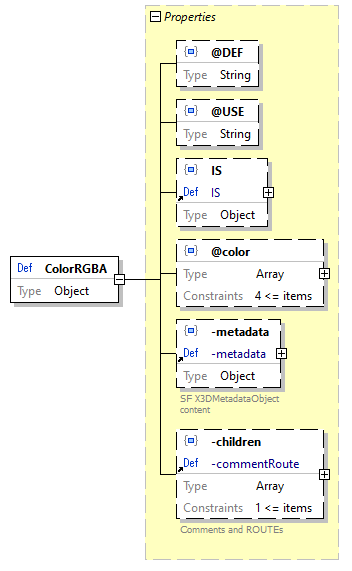

Schema definition ColorRGBA
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p409.png
location C:\x3d-code\www.web3d.org\specifications\x3d-3.3-JSONSchema.json
type Object
properties
Name   Occurrence
@DEF   Optional
@USE   Optional
IS   Optional
@color   Optional
-metadata   Optional
-children   Optional
used by -allNodes > array items [0]+ / Schema / ColorRGBA
-color / ColorRGBA
source code "ColorRGBA": {
    "type": "object",
    "properties": {
        "@DEF": {
            "type": "string"
        },
        "@USE": {
            "type": "string"
        },
        "IS": {
            "$ref": "#/definitions/IS"
        },
        "@color": {
            "type": "array",
            "minItems": 4,
            "items": {
                "type": "number",
                "minimum": 0,
                "maximum": 1
            }
        },
        "-metadata": {
            "$ref": "#/definitions/-metadata"
        },
        "-children": {
            "$ref": "#/definitions/-commentRoute"
        }
    },
    "additionalProperties": false
}

Property ColorRGBA / @DEF
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p410.png
property details
Occurrence  Optional
type String
source code "@DEF": {
    "type": "string"
}

Property ColorRGBA / @USE
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p411.png
property details
Occurrence  Optional
type String
source code "@USE": {
    "type": "string"
}

Property ColorRGBA / IS
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p412.png
property details
Occurrence  Optional
reference IS
source code "IS": {
    "$ref": "#/definitions/IS"
}

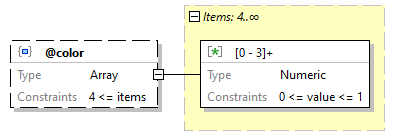

Property ColorRGBA / @color
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p413.png
property details
Occurrence  Optional
type Array
array constraints
Min Items  4
array items
[0 - 3]+  Schema
source code "@color": {
    "type": "array",
    "minItems": 4,
    "items": {
        "type": "number",
        "minimum": 0,
        "maximum": 1
    }
}

Array item wildcard ColorRGBA / @color > array items [0]+ / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p414.png
type Numeric
numeric constraints
Minimum  0
Maximum  1
source code {
    "type": "number",
    "minimum": 0,
    "maximum": 1
}

Property ColorRGBA / -metadata
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p415.png
property details
Occurrence  Optional
reference -metadata
source code "-metadata": {
    "$ref": "#/definitions/-metadata"
}

Property ColorRGBA / -children
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p416.png
property details
Occurrence  Optional
reference -commentRoute
source code "-children": {
    "$ref": "#/definitions/-commentRoute"
}
