Schema definition Color

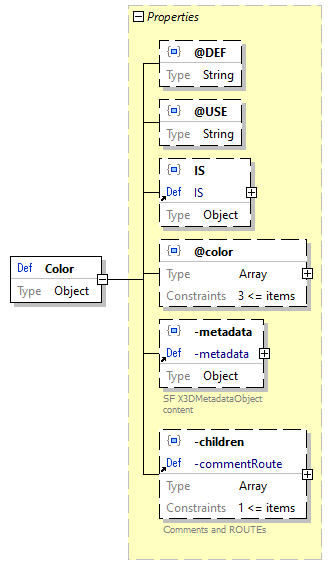

diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p367.png
location E:\x3d-code\www.web3d.org\specifications\x3d-3.3-JSONSchema.json
type Object
properties
Name   Occurrence
@DEF   Optional
@USE   Optional
IS   Optional
@color   Optional
-metadata   Optional
-children   Optional
used by -allNodes > array items [0]+ / Schema / Color
-color / Color
source code "Color": {
    "type": "object",
    "properties": {
        "@DEF": {
            "type": "string"
        },
        "@USE": {
            "type": "string"
        },
        "IS": {
            "$ref": "#/definitions/IS"
        },
        "@color": {
            "type": "array",
            "minItems": 3,
            "items": {
                "type": "number",
                "minimum": 0,
                "maximum": 1
            }
        },
        "-metadata": {
            "$ref": "#/definitions/-metadata"
        },
        "-children": {
            "$ref": "#/definitions/-commentRoute"
        }
    },
    "additionalProperties": false
}

Property Color / @DEF
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p368.png
property details
Occurrence  Optional
type String
source code "@DEF": {
    "type": "string"
}

Property Color / @USE
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p369.png
property details
Occurrence  Optional
type String
source code "@USE": {
    "type": "string"
}

Property Color / IS
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p370.png
property details
Occurrence  Optional
reference IS
source code "IS": {
    "$ref": "#/definitions/IS"
}

Property Color / @color
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p371.png
property details
Occurrence  Optional
type Array
array constraints
Min Items  3
array items
[0 - 2]+  Schema
source code "@color": {
    "type": "array",
    "minItems": 3,
    "items": {
        "type": "number",
        "minimum": 0,
        "maximum": 1
    }
}

Array item wildcard Color / @color > array items [0]+ / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p372.png
type Numeric
numeric constraints
Minimum  0
Maximum  1
source code {
    "type": "number",
    "minimum": 0,
    "maximum": 1
}

Property Color / -metadata
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p373.png
property details
Occurrence  Optional
reference -metadata
source code "-metadata": {
    "$ref": "#/definitions/-metadata"
}

Property Color / -children
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p374.png
property details
Occurrence  Optional
reference -commentRoute
source code "-children": {
    "$ref": "#/definitions/-commentRoute"
}
