Schema definition CollisionCollection
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p328.png
location E:\x3d-code\www.web3d.org\specifications\x3d-3.3-JSONSchema.json
type Object
properties
Name   Occurrence
@DEF   Optional
@USE   Optional
IS   Optional
@appliedParameters   Optional
@bounce   Optional
@enabled   Optional
@frictionCoefficients   Optional
@minBounceSpeed   Optional
@slipFactors   Optional
@softnessConstantForceMix   Optional
@softnessErrorCorrection   Optional
@surfaceSpeed   Optional
-collidables   Optional
-metadata   Optional
-children   Optional
used by -allNodes > array items [0]+ / Schema / CollisionCollection
-collider / CollisionCollection
source code "CollisionCollection": {
    "type": "object",
    "properties": {
        "@DEF": {
            "type": "string"
        },
        "@USE": {
            "type": "string"
        },
        "IS": {
            "$ref": "#/definitions/IS"
        },
        "@appliedParameters": {
            "$ref": "#/definitions/@appliedParameters"
        },
        "@bounce": {
            "type": "number",
            "minimum": 0,
            "maximum": 1,
            "default": 0
        },
        "@enabled": {
            "type": "boolean",
            "default": true
        },
        "@frictionCoefficients": {
            "type": "array",
            "minItems": 2,
            "maxItems": 2,
            "items": {
                "type": "number",
                "minimum": 0,
                "default": 0
            }
        },
        "@minBounceSpeed": {
            "type": "number",
            "minimum": 0,
            "default": 0.1
        },
        "@slipFactors": {
            "type": "array",
            "minItems": 2,
            "maxItems": 2,
            "items": {
                "type": "number",
                "default": 0
            }
        },
        "@softnessConstantForceMix": {
            "type": "number",
            "minimum": 0,
            "maximum": 1,
            "default": 0.0001
        },
        "@softnessErrorCorrection": {
            "type": "number",
            "minimum": 0,
            "maximum": 1,
            "default": 0.8
        },
        "@surfaceSpeed": {
            "type": "array",
            "minItems": 2,
            "maxItems": 2,
            "items": {
                "type": "number",
                "default": 0
            }
        },
        "-collidables": {
            "$ref": "#/definitions/-collidables"
        },
        "-metadata": {
            "$ref": "#/definitions/-metadata"
        },
        "-children": {
            "$ref": "#/definitions/-commentRoute"
        }
    },
    "additionalProperties": false
}

Property CollisionCollection / @DEF
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p329.png
property details
Occurrence  Optional
type String
source code "@DEF": {
    "type": "string"
}

Property CollisionCollection / @USE
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p330.png
property details
Occurrence  Optional
type String
source code "@USE": {
    "type": "string"
}

Property CollisionCollection / IS
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p331.png
property details
Occurrence  Optional
reference IS
source code "IS": {
    "$ref": "#/definitions/IS"
}

Property CollisionCollection / @appliedParameters
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p332.png
property details
Occurrence  Optional
reference @appliedParameters
source code "@appliedParameters": {
    "$ref": "#/definitions/@appliedParameters"
}

Property CollisionCollection / @bounce
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p333.png
property details
Occurrence  Optional
schema details
Default  0
type Numeric
numeric constraints
Minimum  0
Maximum  1
source code "@bounce": {
    "type": "number",
    "minimum": 0,
    "maximum": 1,
    "default": 0
}

Property CollisionCollection / @enabled
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p334.png
property details
Occurrence  Optional
schema details
Default  true
type Boolean
source code "@enabled": {
    "type": "boolean",
    "default": true
}

Property CollisionCollection / @frictionCoefficients
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p335.png
property details
Occurrence  Optional
type Array
array constraints
Min Items  2
Max Items  2
array items
[0 - 1]  Schema
source code "@frictionCoefficients": {
    "type": "array",
    "minItems": 2,
    "maxItems": 2,
    "items": {
        "type": "number",
        "minimum": 0,
        "default": 0
    }
}

Array item wildcard CollisionCollection / @frictionCoefficients > array items [0]+ / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p336.png
schema details
Default  0
type Numeric
numeric constraints
Minimum  0
source code {
    "type": "number",
    "minimum": 0,
    "default": 0
}

Property CollisionCollection / @minBounceSpeed
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p337.png
property details
Occurrence  Optional
schema details
Default  0.1
type Numeric
numeric constraints
Minimum  0
source code "@minBounceSpeed": {
    "type": "number",
    "minimum": 0,
    "default": 0.1
}

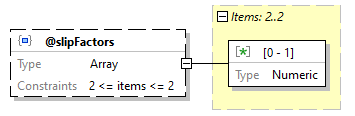

Property CollisionCollection / @slipFactors
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p338.png
property details
Occurrence  Optional
type Array
array constraints
Min Items  2
Max Items  2
array items
[0 - 1]  Schema
source code "@slipFactors": {
    "type": "array",
    "minItems": 2,
    "maxItems": 2,
    "items": {
        "type": "number",
        "default": 0
    }
}

Array item wildcard CollisionCollection / @slipFactors > array items [0]+ / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p339.png
schema details
Default  0
type Numeric
source code {
    "type": "number",
    "default": 0
}

Property CollisionCollection / @softnessConstantForceMix
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p340.png
property details
Occurrence  Optional
schema details
Default  0.0001
type Numeric
numeric constraints
Minimum  0
Maximum  1
source code "@softnessConstantForceMix": {
    "type": "number",
    "minimum": 0,
    "maximum": 1,
    "default": 0.0001
}

Property CollisionCollection / @softnessErrorCorrection
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p341.png
property details
Occurrence  Optional
schema details
Default  0.8
type Numeric
numeric constraints
Minimum  0
Maximum  1
source code "@softnessErrorCorrection": {
    "type": "number",
    "minimum": 0,
    "maximum": 1,
    "default": 0.8
}

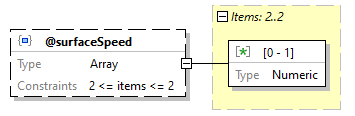

Property CollisionCollection / @surfaceSpeed
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p342.png
property details
Occurrence  Optional
type Array
array constraints
Min Items  2
Max Items  2
array items
[0 - 1]  Schema
source code "@surfaceSpeed": {
    "type": "array",
    "minItems": 2,
    "maxItems": 2,
    "items": {
        "type": "number",
        "default": 0
    }
}

Array item wildcard CollisionCollection / @surfaceSpeed > array items [0]+ / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p343.png
schema details
Default  0
type Numeric
source code {
    "type": "number",
    "default": 0
}

Property CollisionCollection / -collidables
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p344.png
property details
Occurrence  Optional
reference -collidables
source code "-collidables": {
    "$ref": "#/definitions/-collidables"
}

Property CollisionCollection / -metadata
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p345.png
property details
Occurrence  Optional
reference -metadata
source code "-metadata": {
    "$ref": "#/definitions/-metadata"
}

Property CollisionCollection / -children
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p346.png
property details
Occurrence  Optional
reference -commentRoute
source code "-children": {
    "$ref": "#/definitions/-commentRoute"
}
