Schema definition CollidableShape

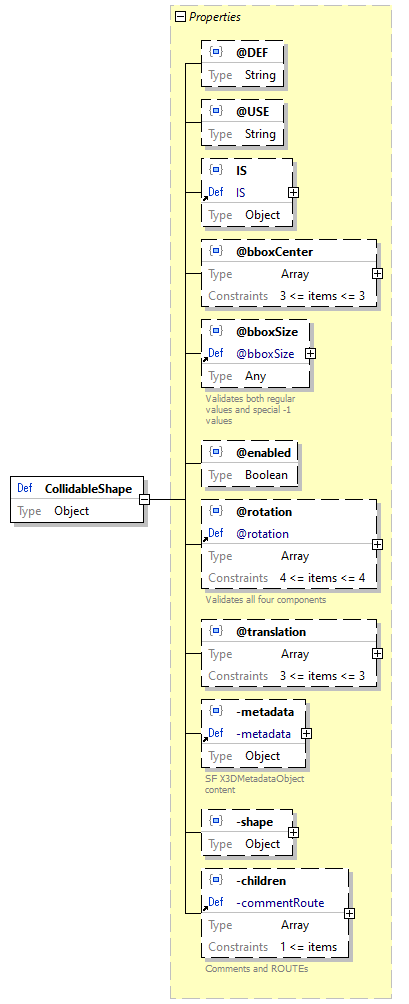

diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p301.png
location E:\x3d-code\www.web3d.org\specifications\x3d-3.3-JSONSchema.json
type Object
properties
Name   Occurrence
@DEF   Optional
@USE   Optional
IS   Optional
@bboxCenter   Optional
@bboxSize   Optional
@enabled   Optional
@rotation   Optional
@translation   Optional
-metadata   Optional
-shape   Optional
-children   Optional
used by Scene / -children > array items [0]+ / Schema / CollidableShape
-allNodes > array items [0]+ / Schema / CollidableShape
-child / CollidableShape
-children > array items [0]+ / Schema / CollidableShape
-collidable / CollidableShape
-collidables > array items [0]+ / Schema / CollidableShape
source code "CollidableShape": {
    "type": "object",
    "properties": {
        "@DEF": {
            "type": "string"
        },
        "@USE": {
            "type": "string"
        },
        "IS": {
            "$ref": "#/definitions/IS"
        },
        "@bboxCenter": {
            "type": "array",
            "minItems": 3,
            "maxItems": 3,
            "items": {
                "type": "number",
                "default": 0
            }
        },
        "@bboxSize": {
            "$ref": "#/definitions/@bboxSize"
        },
        "@enabled": {
            "type": "boolean",
            "default": true
        },
        "@rotation": {
            "$ref": "#/definitions/@rotation"
        },
        "@translation": {
            "type": "array",
            "minItems": 3,
            "maxItems": 3,
            "items": {
                "type": "number",
                "default": 0
            }
        },
        "-metadata": {
            "$ref": "#/definitions/-metadata"
        },
        "-shape": {
            "type": "object",
            "properties": {
                "Shape": {
                    "$ref": "#/definitions/Shape"
                },
                "ProtoInstance": {
                    "$ref": "#/definitions/ProtoInstance"
                }
            },
            "additionalProperties": false
        },
        "-children": {
            "$ref": "#/definitions/-commentRoute"
        }
    },
    "additionalProperties": false
}

Property CollidableShape / @DEF
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p302.png
property details
Occurrence  Optional
type String
source code "@DEF": {
    "type": "string"
}

Property CollidableShape / @USE
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p303.png
property details
Occurrence  Optional
type String
source code "@USE": {
    "type": "string"
}

Property CollidableShape / IS
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p304.png
property details
Occurrence  Optional
reference IS
source code "IS": {
    "$ref": "#/definitions/IS"
}

Property CollidableShape / @bboxCenter

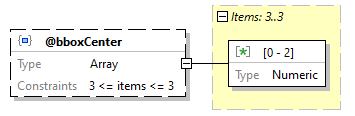

diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p305.png
property details
Occurrence  Optional
type Array
array constraints
Min Items  3
Max Items  3
array items
[0 - 2]  Schema
source code "@bboxCenter": {
    "type": "array",
    "minItems": 3,
    "maxItems": 3,
    "items": {
        "type": "number",
        "default": 0
    }
}

Array item wildcard CollidableShape / @bboxCenter > array items [0]+ / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p306.png
schema details
Default  0
type Numeric
source code {
    "type": "number",
    "default": 0
}

Property CollidableShape / @bboxSize
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p307.png
property details
Occurrence  Optional
reference @bboxSize
source code "@bboxSize": {
    "$ref": "#/definitions/@bboxSize"
}

Property CollidableShape / @enabled
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p308.png
property details
Occurrence  Optional
schema details
Default  true
type Boolean
source code "@enabled": {
    "type": "boolean",
    "default": true
}

Property CollidableShape / @rotation
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p309.png
property details
Occurrence  Optional
reference @rotation
source code "@rotation": {
    "$ref": "#/definitions/@rotation"
}

Property CollidableShape / @translation

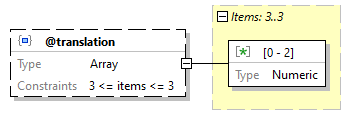

diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p310.png
property details
Occurrence  Optional
type Array
array constraints
Min Items  3
Max Items  3
array items
[0 - 2]  Schema
source code "@translation": {
    "type": "array",
    "minItems": 3,
    "maxItems": 3,
    "items": {
        "type": "number",
        "default": 0
    }
}

Array item wildcard CollidableShape / @translation > array items [0]+ / Schema
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p311.png
schema details
Default  0
type Numeric
source code {
    "type": "number",
    "default": 0
}

Property CollidableShape / -metadata
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p312.png
property details
Occurrence  Optional
reference -metadata
source code "-metadata": {
    "$ref": "#/definitions/-metadata"
}

Property CollidableShape / -shape

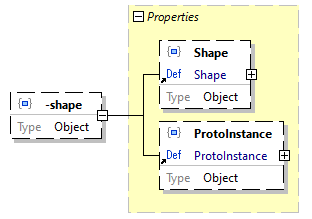

diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p313.png
property details
Occurrence  Optional
type Object
properties
Name   Occurrence
Shape   Optional
ProtoInstance   Optional
source code "-shape": {
    "type": "object",
    "properties": {
        "Shape": {
            "$ref": "#/definitions/Shape"
        },
        "ProtoInstance": {
            "$ref": "#/definitions/ProtoInstance"
        }
    },
    "additionalProperties": false
}

Property CollidableShape / -shape / Shape
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p314.png
property details
Occurrence  Optional
reference Shape
source code "Shape": {
    "$ref": "#/definitions/Shape"
}

Property CollidableShape / -shape / ProtoInstance
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p315.png
property details
Occurrence  Optional
reference ProtoInstance
source code "ProtoInstance": {
    "$ref": "#/definitions/ProtoInstance"
}

Property CollidableShape / -children
diagram x3d-3.3-JSONSchema_diagrams/x3d-3.3-JSONSchema_p316.png
property details
Occurrence  Optional
reference -commentRoute
source code "-children": {
    "$ref": "#/definitions/-commentRoute"
}
