Extensible 3D (X3D)
Part 1: Architecture and base components

17 Lighting component

--- X3D separator bar ---

cube 17.1 Introduction

17.1.1 Name

The name of this component is "Lighting". This name shall be used when referring to this component in the COMPONENT statement (see 7.2.5.4 Component statement).

17.1.2 Overview

This clause describes the Lighting component of this part of ISO/IEC 19775. This includes how light sources are defined and positioned as well as how lights effect the rendered image. Table 17.1 provides links to the major topics in this clause.

Table 17.1 — Topics

cube 17.2 Concepts

17.2.1 Light source semantics

17.2.1.1 Overview

Shape nodes are illuminated by the sum of all of the lights in the world that affect them. This includes the contribution of both the direct and ambient illumination from light sources. Ambient illumination results from the scattering and reflection of light originally emitted directly by light sources. The amount of ambient light is associated with the individual lights in the scene. This is a gross approximation to how ambient reflection actually occurs in nature.

Any node used as a source of illumination is derived from X3DLightNode. All light sources contain an intensity, a color, and an ambientIntensity field. The intensity field specifies the brightness of the direct emission from the light, and the ambientIntensity specifies the intensity of the ambient emission from the light. Light intensity may range from 0.0 (no light emission) to 1.0 (full intensity). The color field specifies the spectral colour properties of both the direct and ambient light emission as an RGB value. The on field specifies whether the light is enabled or disabled. If the value is FALSE, the light is disabled and will not affect any nodes in the scene. If the value is TRUE, the light will affect other nodes according to the 17.2.1.2 Scoping of lights.

The following node types are light source nodes:

PointLight and SpotLight illuminate all objects in the world that fall within their volume of lighting influence regardless of location within the transformation hierarchy. PointLight defines this volume of influence as a sphere centred at the light (defined by a radius). SpotLight defines the volume of influence as a solid angle defined by a radius and a cut-off angle. DirectionalLight nodes illuminate only the objects descended from the light's parent grouping node, including any descendent children of the parent grouping nodes.

17.2.1.2 Scoping of lights

Each light type defines a global field that determines whether the light is global or scoped. Global lights illuminate all objects that fall within their volume of lighting influence. Scoped lights only illuminate objects that are in the same transformation hierarchy as the light; i.e., only the children and descendants of its enclosing parent group are illuminated. This allows the creation of realistic effects such as lights that illuminate a single room.

17.2.2 Lighting model

17.2.2.1 Introduction

The X3D lighting model provides detailed equations that specify the colours to apply to each geometric object. For each object, the values of the Material, color, and/or texture currently being applied to the object are combined with the lights illuminating the object and the currently bound X3DFogObject (if specified). These equations are designed to simulate the physical properties of light striking a surface.

If a programmable shader is defined for an Appearance node, the lighting model shall be disabled and replaced by the functionality implemented by the shader program. See 31 Programmable shaders component for more information.

17.2.2.2 Lighting 'off'

A Shape node is unlit if either of the following is true:

  1. The shape's appearance field is NULL (default).
  2. The material field in the Appearance node is NULL (default).

NOTE Geometry nodes that represent lines or points do not support lighting.

If the shape is unlit, the colour (Irgb) and alpha (A, 1−transparency) of the shape at each point on the shape's geometry is specified in Table 17.2.

Table 17.2 — Unlit colour and alpha mapping

Texture type Colour per-vertex
or per-face
Colour NULL
No texture Irgb= ICrgb
A = 1
Irgb= (1, 1, 1)
A = 1
Intensity
(one-component)
Irgb= IT × ICrgb
A = 1
Irgb = (IT,IT,IT )
A = 1
Intensity+Alpha
(two-component)
Irgb= I T × ICrgb
A = AT
Irgb= (IT,IT,IT )
A = AT
RGB
(three-component)
Irgb= ITrgb
A = 1
Irgb= ITrgb
A = 1
RGBA
(four-component)
Irgb= ITrgb
A = AT
Irgb= ITrgb A = AT

where:

AT = normalized [0, 1] alpha value from 2 or 4 component texture image
ICrgb = interpolated per-vertex colour, or per-face colour, from Color node
IT = normalized [0, 1] intensity from 1 or 2 component texture image
ITrgb= colour from 3-4 component texture image

17.2.2.3 Lighting 'on'

If the Shape node is lit (i.e., a Material and an Appearance node are specified for the Shape), the Material and Texture nodes determine the diffuse colour for the lighting equation as specified in Table 17.3.

The Material's diffuseColor field modulates the color in the texture. Hence, a diffuseColor of white will result in the pure color of the texture, while a diffuseColor of black will result in a black diffuse factor regardless of the texture.

The Material's transparency field modulates the alpha in the texture. Hence, a transparency of 0 will result in an alpha equal to that of the texture. A transparency of 1 will result in an alpha of 0 regardless of the value in the texture.

Table 17.3 — Lit colour and alpha mapping

Texture type Colour per-vertex
     or per-face
Color node NULL
No texture ODrgb = ICrgb
A = 1-TM
ODrgb = IDrgb
A = 1-TM
Intensity texture
(one-component)
ODrgb = IT × ICrgb
A = 1-TM
ODrgb = IT × IDrgb
A = 1-TM
Intensity+Alpha texture
(two-component)
ODrgb = IT × ICrgb
A = AT
ODrgb = IT × IDrgb
A = AT
RGB texture
(three-component)
ODrgb = ITrgb
A = 1-TM
ODrgb = ITrgb
A = 1-TM
RGBA texture
(four-component)
ODrgb = ITrgb
A = AT
ODrgb = ITrgb
A = AT

where:

IDrgb = material diffuseColor
ODrgb = diffuse factor, used in lighting equations below
TM = material transparency

All other terms are as defined in 17.2.2.2 Lighting off.

17.2.2.4 Lighting equations

An ideal X3D implementation will evaluate the following lighting equation at each point on a lit surface. RGB intensities at each point on a geometry (Irgb) are given by:

Irgb = IFrgb × (1 -f0)
        + f0 × (OE rgb + SUM( oni × attenuationi × spoti × ILrgb
                             × (ambienti + diffusei + specular i)))

where:

attenuationi = 1 / max(c1 + c2 × dL + c3 × dL² , 1 )
ambienti = Iia × ODrgb × Oa

diffusei = Ii × ODrgb × ( N · L )
specular i = Ii × OSrgb × ( N · ((L + V) / |L + V|))shininess × 128

and:

· = modified vector dot product:
       if dot product < 0, then 0.0, otherwise, dot product
c1 , c2, c 3 = light i attenuation
dV = distance from point on geometry to viewer's position, in coordinate system of current fog node
dL = distance from light to point on geometry, in light's coordinate system
f0 = fog interpolant, see Table 17.5 for calculation
IFrgb = currently bound fog's color
I Lrgb = light i color
Ii = light i intensity
Iia = light i ambientIntensity
L = (PointLight/SpotLight) normalized vector from point on geometry to light source i position
L = (DirectionalLight) -direction of light source i
N = normalized normal vector at this point on geometry (interpolated from vertex normals specified in a node derived from X3DNormalNode or calculated by browser)
Oa = X3DMaterialNode ambientIntensity
ODrgb = diffuse colour, from a node derived from X3DMaterialNode,  a node derived from X3DColorNode, and/or a texture node
OErgb = X3DMaterialNode emissiveColor
OSrgb = X3DMaterialNode specularColor
on i = 1, if light source i affects this point on the geometry,
  0, if light source i does not affect this geometry. The following conditions indicate that light source i does not affect this geometry:

   a. if the geometry is farther away than radius for PointLight or SpotLight;
   b. if the geometry is outside the enclosing X3DGroupingNode; and/or
   c. if the on field is FALSE.
shininess = X3DMaterialNode shininess
spotAngle = arccosine(-L · spotDiri)
spot BW = SpotLight i beamWidth
spot CO = SpotLight i cutOffAngle
spot i = spotlight factor, see Table 17.4 for calculation
spotDiri = normalized SpotLight i direction
SUM: sum over all light sources i
V = normalized vector from point on geometry to viewer's position

Table 17.4 — Calculation of the spotlight factor

Condition (in order) spoti =
lighti is PointLight or DirectionalLight 1
spotAngle ≥ spotCO 0
spotAngle ≤ spotBW 1
spotBW  < spotAngle < spot CO (spotAngle - spotCO ) / (spotBW - spotCO)

Table 17.5 — Calculation of the fog interpolant

Condition f0 =
no fog 1
fogType "LINEAR", dV < fogVisibility (fogVisibility-dV) / fogVisibility
fogType "LINEAR", dV > fogVisibility 0
fogType "EXPONENTIAL", dV < fogVisibility exp(-dV / (fogVisibility-dV ) )
fogType "EXPONENTIAL", dV > fogVisibility 0

17.2.2.5 References

The X3D lighting equations are based on the simple illumination equations given in [FOLEY] and [OPENGL].

cube 17.3 Abstract types

17.3.1 X3DLightNode

X3DLightNode : X3DChildNode {
  SFFloat [in,out] ambientIntensity 0     [0,1]
  SFColor [in,out] color            1 1 1 [0,1]
  SFBool  [in,out] global           FALSE
  SFFloat [in,out] intensity        1     [0,1]
  SFNode  [in,out] metadata         NULL  [X3DMetadataObject]
  SFBool  [in,out] on               TRUE
}

The X3DLightNode abstract node type is the base type from which all node types that serve as light sources are derived. A description of the ambientIntensity, color, intensity, and on fields is in 17.2.1 Light source semantics. A description of the global field is in 17.2.1.2 Scoping of lights.

cube 17.4 Node reference

17.4.1 DirectionalLight

DirectionalLight : X3DLightNode {
  SFFloat [in,out] ambientIntensity 0      [0,1]
  SFColor [in,out] color            1 1 1  [0,1]
  SFVec3f [in,out] direction        0 0 -1 (-∞,∞)
  SFBool  [in,out] global           FALSE
  SFFloat [in,out] intensity        1      [0,1]
  SFNode  [in,out] metadata         NULL   [X3DMetadataObject]
  SFBool  [in,out] on               TRUE
}

The DirectionalLight node defines a directional light source that illuminates along rays parallel to a given 3-dimensional vector. A description of the ambientIntensity, color, intensity, and on fields is in 17.2.1 Light source semantics. A description of the global field is in 17.2.1.2 Scoping of lights.

The direction field specifies the direction vector of the illumination emanating from the light source in the local coordinate system. Light is emitted along parallel rays from an infinite distance away. A directional light source illuminates only the objects in its enclosing parent group. The light may illuminate everything within this coordinate system, including all children and descendants of its parent group. The accumulated transformations of the parent nodes affect the light.

DirectionalLight nodes do not attenuate with distance. A precise description of X3D's lighting equations is contained in 17.2.2 Lighting model.

17.4.2 PointLight

PointLight : X3DLightNode {
  SFFloat [in,out] ambientIntensity 0     [0,1]
  SFVec3f [in,out] attenuation      1 0 0 [0,∞)
  SFColor [in,out] color            1 1 1 [0,1]
  SFBool  [in,out] global           TRUE
  SFFloat [in,out] intensity        1     [0,1]
  SFVec3f [in,out] location         0 0 0 (-∞,∞)
  SFNode  [in,out] metadata         NULL  [X3DMetadataObject]
  SFBool  [in,out] on               TRUE
  SFFloat [in,out] radius           100   [0,∞)
}

The PointLight node specifies a point light source at a 3D location in the local coordinate system. A point light source emits light equally in all directions; that is, it is omnidirectional. PointLight nodes are specified in the local coordinate system and are affected by ancestor transformations. A description of the global field is in 17.2.1.2 Scoping of lights.

Subclause 17.2.1 Light source semantics, contains a detailed description of the ambientIntensity, color, and intensity fields.

A PointLight node illuminates geometry within radius metres of its location. Both radius and location are affected by ancestors' transformations (scales affect radius and transformations affect location). The radius field shall be greater than or equal to zero.

PointLight node's illumination falls off with distance as specified by three attenuation coefficients. The attenuation factor is:

1/max(attenuation[0] + attenuation[1] × r + attenuation[2] × r2, 1)

where r is the distance from the light to the surface being illuminated. The default is no attenuation. An attenuation value of (0, 0, 0) is identical to (1, 0, 0). Attenuation values shall be greater than or equal to zero. A detailed description of X3D's lighting equations is contained in 17.2.2 Lighting model.

17.4.3 SpotLight

SpotLight : X3DLightNode {
  SFFloat [in,out] ambientIntensity 0        [0,1]
  SFVec3f [in,out] attenuation      1 0 0    [0,∞)
  SFFloat [in,out] beamWidth        π/2      (0,π/2]
  SFColor [in,out] color            1 1 1    [0,1]
  SFFloat [in,out] cutOffAngle      π/4      (0,π/2]
  SFVec3f [in,out] direction        0 0 -1   (-∞,∞)
  SFBool  [in,out] global           TRUE
  SFFloat [in,out] intensity        1        [0,1]
  SFVec3f [in,out] location         0 0 0    (-∞,∞)
  SFNode  [in,out] metadata         NULL     [X3DMetadataObject]
  SFBool  [in,out] on               TRUE
  SFFloat [in,out] radius           100      [0,∞)
}

The SpotLight node defines a light source that emits light from a specific point along a specific direction vector and constrained within a solid angle. Spotlights may illuminate geometry nodes that respond to light sources and intersect the solid angle defined by the SpotLight. Spotlight nodes are specified in the local coordinate system and are affected by ancestors' transformations. A description of the global field is in 17.2.1.2 Scoping of lights.

A detailed description of ambientIntensity, color, intensity, and the lighting equations of X3D is provided in 17.2.1 Light source semantics. More information on lighting concepts can be found in 17.2.2 Lighting model, including a detailed description of the X3D lighting equations.

The location field specifies a translation offset of the centre point of the light source from the light's local coordinate system origin. This point is the apex of the solid angle which bounds light emission from the given light source. The direction field specifies the direction vector of the light's central axis defined in the local coordinate system.

The on field specifies whether the light source emits light. If on is TRUE, the light source is emitting light and may illuminate geometry in the scene. If on is FALSE, the light source does not emit light and does not illuminate any geometry.

The radius field specifies the radial extent of the solid angle and the maximum distance from location that may be illuminated by the light source. The light source does not emit light outside this radius. The radius shall be greater than or equal to zero.

Both radius and location are affected by ancestors' transformations (scales affect radius and transformations affect location).

The cutOffAngle field specifies the outer bound of the solid angle. The light source does not emit light outside of this solid angle. The beamWidth field specifies an inner solid angle in which the light source emits light at uniform full intensity. The light source's emission intensity drops off from the inner solid angle (beamWidth) to the outer solid angle (cutOffAngle) as described in the following equations:

    angle = the angle between the Spotlight's direction vector
            and the vector from the Spotlight location to the point
            to be illuminated

    if (angle ≥ cutOffAngle):
        multiplier = 0
    else if (angle ≤ beamWidth):
        multiplier = 1
    else:
        multiplier = (angle - cutOffAngle) / (beamWidth - cutOffAngle)
    intensity(angle) = SpotLight.intensity × multiplier

If the beamWidth is greater than the cutOffAngle, beamWidth is defined to be equal to the cutOffAngle and the light source emits full intensity within the entire solid angle defined by cutOffAngle. Both beamWidth and cutOffAngle shall be greater than 0.0 and less than or equal to π/2. Figure 17.1 depicts the beamWidth, cutOffAngle, direction, location, and radius fields of the SpotLight node.

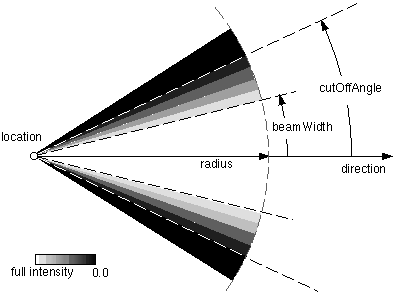

SpotLight node

Figure 17.1 — SpotLight node

SpotLight illumination falls off with distance as specified by three attenuation coefficients. The attenuation factor is:

1/max(attenuation[0] + attenuation[1] × r + attenuation[2] × r2 , 1)

where r is the distance from the light to the surface being illuminated. The default is no attenuation. An attenuation value of (0, 0, 0) is identical to (1, 0, 0). Attenuation values shall be greater than or equal to zero. A detailed description of X3D's lighting equations is contained in 17.2.2 Lighting model.

cube 17.5 Support levels

The Lighting component provides three levels of support as specified in Table 17.6.

Table 17.6 — Lighting component support levels

Level Prerequisites Nodes/Features Support
1 Core 1
Shape 1
X3DLightNode (abstract) n/a
DirectionalLight Not scoped by parent Group or Transform.
2 Core 1
Shape 1

All Level 1 Lighting nodes All fields as supported in Level 1.
PointLight radius optionally supported. Linear attenuation.
SpotLight beamWidth optionally supported. radius optionally supported. Linear attenuation.
3 Core 1
Shape 1
All Level 2 Lighting nodes All fields fully supported.
